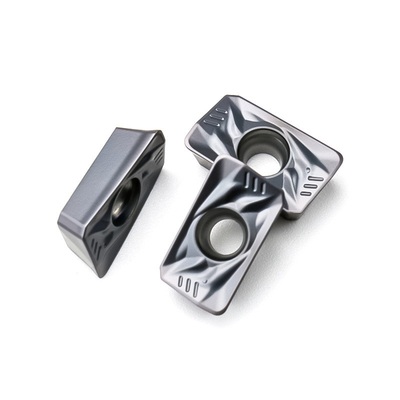

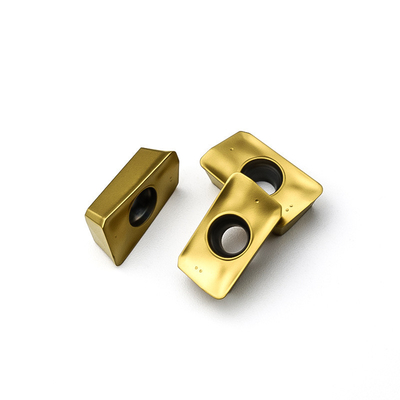

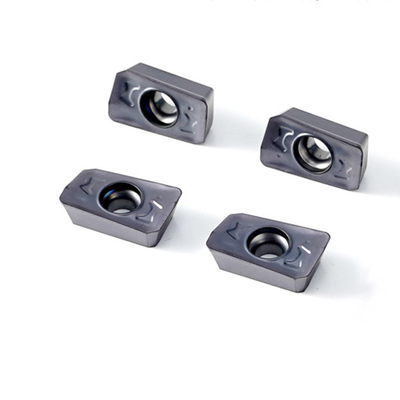

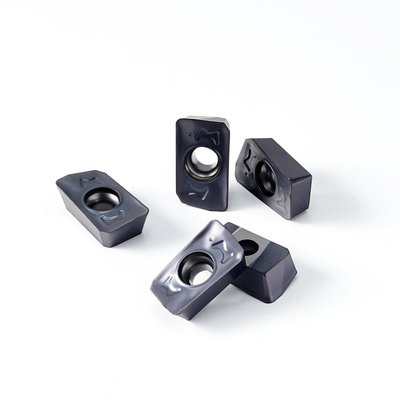

APMT Carbide Milling Inserts for High-Speed Semi-Finish Milling Effective on Various Materials with Advanced Coating
APMT carbide milling inserts are primarily designed for internal turning and milling operations, making them suitable for CNC lathe machinery. With an advanced nano coating applied to ultrafine carbide, these inserts feature robust cutting edges that exhibit high wear and buildup resistance. They are particularly effective for semi-finish milling at high speeds across a wide range of materials, especially stainless steels and high-temperature alloys.
Product Details — APMT1135PDER
Material Quality
- Composition: Manufactured from 100% original carbide powder, including grades K10-K20, P10-P20, and M10-M30, providing excellent wear resistance and toughness.
Usage
- Designed for CNC lathe milling and turning, particularly effective for processing steels and stainless steels with HRC < 50.
Dimensions
- Length (l): 11 or 16.5 mm
- Diameter (d): 6.35 to 9.525 mm
- Thickness (t): 3.5 to 5.1 mm
- For detailed specifications, refer to the table below.
Coating
- Advanced Coating: Tailored to your application needs, utilizing cutting-edge coating technology for enhanced corrosion and wear resistance.
Fine Grinding Process
- The insert surface boasts high smoothness and excellent cutting edge quality, significantly reducing friction and tool wear.
Perfect Fit
- Designed with precise and smooth edge strips, minimizing micro-vibration during processing.
Applicable Materials
- Uncoated Inserts: Suitable for aluminum, non-ferrous metals, and non-metallic materials.
- Coated Inserts: Ideal for carbon steel, alloy steel, mold steel, hardened steel, and ductile iron.
Customization
- If standard stock does not meet your requirements, please provide CAD or 3D drawings for a tailored solution.
Production Quality
- All inserts are produced using high-end EU processing equipment. For more details, refer to the “Entire Production Quick View” section below.
Product Features
- Suitable for processing steel, stainless steel, and aluminum.
- Exceptional wear and breakage resistance.
- Professional inspection ensures high precision.
- High accuracy and easy replacement, ensuring compatibility with tool holders to minimize micro-vibration.
- High-performance composite coating offers a super hard and smooth surface.
Product Specification:
| Part Number |
Dimensions(mm) |
| l |
d |
t |
tip angle R |
| APMT1604--H2 |
16.5 |
9.525 |
4.76 |
0.8 |
| APMT1135--H2 |
11 |
6.35 |
3.5 |
0.8 |
| APMT1604--M2 |
16.5 |
9.525 |
4.76 |
0.8 |
| APMT1135--M2 |
11 |
6.35 |
3.5 |
0.8 |
| APMT1605--XM |
16.5 |
9.525 |
5.1 |
0.8 |
| APMT1135--XM |
11 |
6.35 |
3.5 |
0.8 |
| APMT1604--PM |
16.5 |
9.525 |
4.76 |
0.8 |
| APMT1135--PM |
11 |
6.35 |
3.5 |
0.8 |
| APKT1135--G2 |
11 |
6.35 |
3.5 |
0.8 |
| APKT1604--G2 |
16.5 |
9.2 |
4.5 |
0.8 |
| APKT1604--AK |
16.5 |
9.525 |
5.1 |
0.4 |
| Attention:The above are our standard production size and standard stock specifications for this series, the size details can be processed separately according to customer requirements |
Entire Production Quick View:
1.Use 100% original carbide powder to sinter to get the integral insert blank.
2.Flat grinding machining.
3.Surrounding grinding machining.
4.Create insert cutting edge.
5.Chamfering and tip-arc processing of the insert cutting edge.
6.Composite Coating.
Quality Inspection:
Why choose us:
1.Advanced Technology: Complex surfaces and functional structures can be quickly formed and kept accurate.
2.Short Machining Period: Short production cycle to ensure delivery on time according to the delivery date.
3.Crowned Product: High quality guaranteed.High precision, up to 0.005-0.001mm.
4.Confidentiality System: Triple confidentiality measures to protect customer’s private design. Proofing more assured.
5.Fully Equipment: Excellent processing capacity, multiple production lines, advanced equipment, professional supporting facilities.
6.Cost-effective: Reasonable design and material selection lead us to a competitive price, so that could help supply customers cheaper price of the same level products .
