TKF12 Carbide Grooving Insert 0.5-2.0mm CW for CNC Lathe Steel Parts

10 pcs
MOQ
Dapat dinegosiasikan
harga
TKF12 Carbide Grooving Insert 0.5-2.0mm CW for CNC Lathe Steel Parts
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Nama merek: Drow
Nomor model: Sisipan seri TKF12
Dukungan khusus: OEM, ODM
Standar: Iso
Jenis produk: Sisipan pemotongan karbida, bagian alat CNC
Bahan: 100% Virgin Tungsten Carbide
Kekerasan: HRA 91.3~92.3
Presisi: ± 0,005mm
Ukuran: CW: 0.25 ~ 2.0mm; Cutdia: 5 ~ 12mm; Re: 0 ~ 0.08mm; PSIRR: 0 ~ 20 °;
Pemegang: Ktkfr/l dll
Lapisan: PVD atau didefinisikan sesuai permintaan dan aplikasi Anda yang berbeda
Bahan yang berlaku (sisipan tidak dilapisi):: Aluminium, tembaga, logam non-ferrous.non-logam
Bahan yang berlaku (sisipan berlapis):: Baja karbon, baja paduan, baja cetakan, baja lainnya, besi ulet
Penggunaan: Pemotongan logam, grooving dan berpisah
Mesin yang kompatibel: Mesin bubut CNC, mesin pemusatan, dll
Menyoroti:

carbide grooving insert for CNC lathe

,

TKF12 grooving insert 0.5-2.0mm

,

carbide insert for steel parts
Informasi dasar
Tempat asal: Dongguan, Cina
Nama merek: Drow
Sertifikasi: ISO9001
Nomor model: Sisipan seri TKF12
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: 10 pcs dalam kotak, 100 kotak dalam karton
Waktu pengiriman: <i>Depend on the quantity.</i> <b>Tergantung pada kuantitas.</b> <i>Usually 1~3 workdays if in stock
Syarat-syarat pembayaran: T/T dll
Menyediakan kemampuan: 100*1000 buah/bulan
Deskripsi Produk

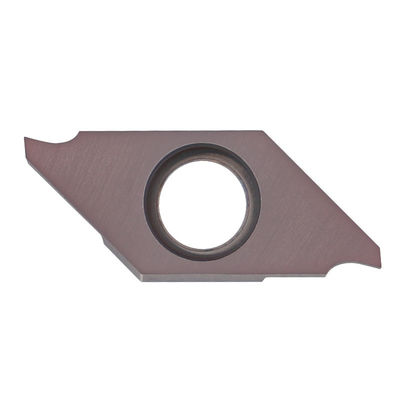

TKF12 Small Diameter Carbide Grooving Insert For CNC Lathe Steel Small Parts
Product Overview

The TKF12 is a premium CNC carbide parting-off and external grooving insert designed for small diameter steel parts. These replaceable, indexable carbide inserts are ideal for grooving and cutting operations on lathes and CNC machines, available in various shapes and cutting angles.

Key Features
  • Excellent material: 100% original carbide powder for superior wear resistance and toughness
  • Advanced coating technology for corrosion and wear resistance
  • Precision grinding process ensures high surface smoothness and cutting edge quality
  • Perfect fit with tool holders to minimize micro-vibration during processing
  • Customizable dimensions, coatings, chip-breakers, and material grades available
TKF12 Carbide Grooving Insert 0.5-2.0mm CW for CNC Lathe Steel Parts 0
Technical Specifications
Part Number W1 S D1
TKF12_ 3 8.7 5
Detailed Dimensions
Part Number CW (mm) CUTDIA (mm) RE (mm) PSIRR
TKF12 R/L 050-S-16DR 0.5 5 0.03 16°
TKF12 R/L 070-S-16DR 0.7 8   16°
TKF12 R/L 100-S-16DR 1.0 12   16°
Additional sizes available - see full specification table for complete details

Note: Dimensions can be customized according to customer requirements based on Kyocera's TKF12 series standards.

Production Process
  • Sintering with 100% original carbide powder
  • Precision flat and surrounding surface grinding
  • Cutting edge formation per specifications
  • Chamfering and tip-arc processing
  • Advanced composite coating application
Quality Assurance
  • Microscope inspection by experienced staff
  • Swiss edging and German forging difference process detection
  • Edge passivation detection
  • Coreless grinding verification
TKF12 Carbide Grooving Insert 0.5-2.0mm CW for CNC Lathe Steel Parts 1
Why Choose Our TKF12 Inserts
  • Technical innovation for complex surface machining
  • Fast production cycle and reliable delivery
  • Consistent quality with stable performance
  • Excellent negative chamfer design for blade strength
  • Fully equipped facility with advanced processing capabilities
  • Cost-effective pricing for premium quality
Frequently Asked Questions
Q: Is confidentiality guaranteed for our cooperation?

A: Yes, all company information, drawings, and purchase details remain confidential. We can sign a Non-Disclosure Agreement (NDA) upon request.

Q: What are your payment terms?

A: 30% deposit via T/T, with 70% balance paid before delivery. We provide product photos before final payment.

Q: How is product quality ensured?

A: We conduct 100% inspection for first batches and random inspections for subsequent orders. Raw materials are tested before production, with physical properties and tolerances verified before shipping.
