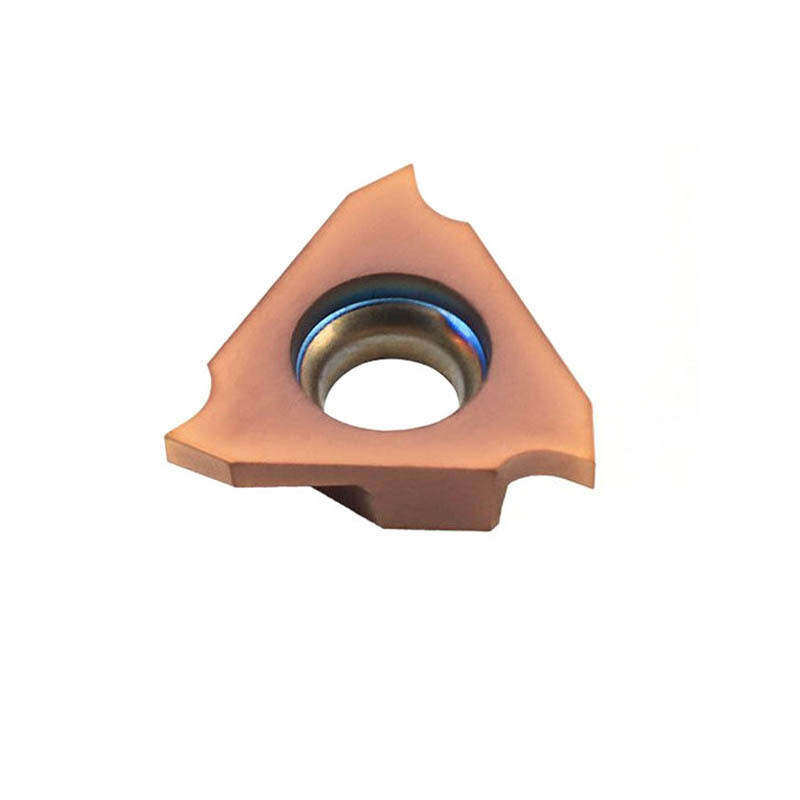

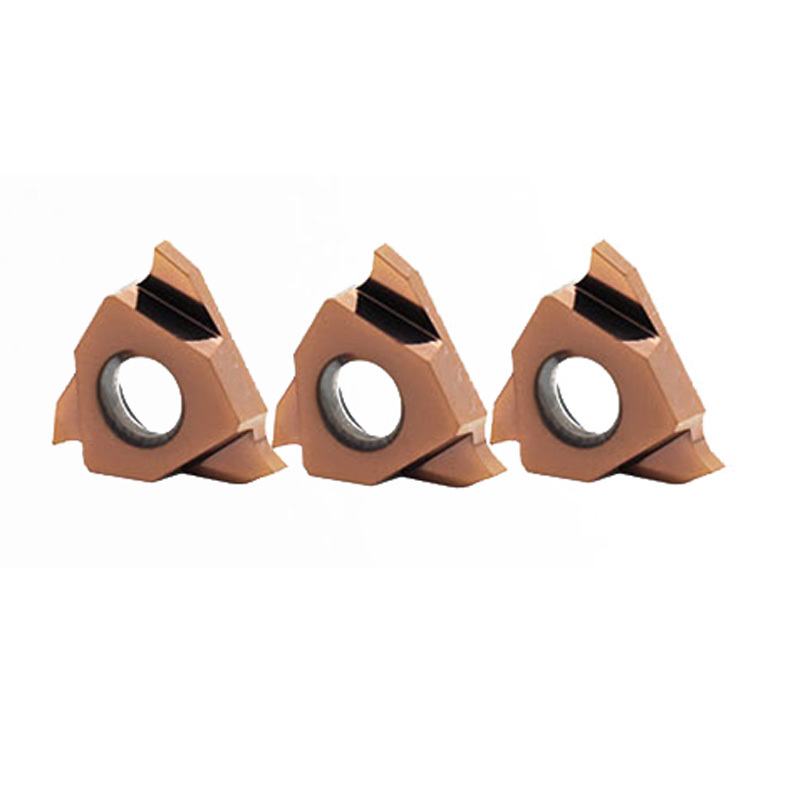

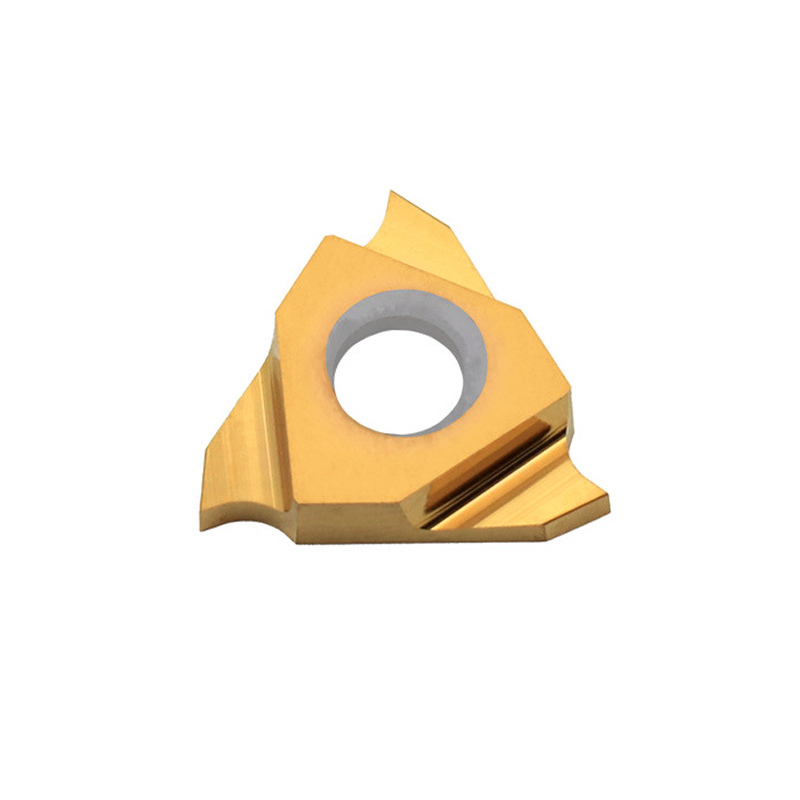

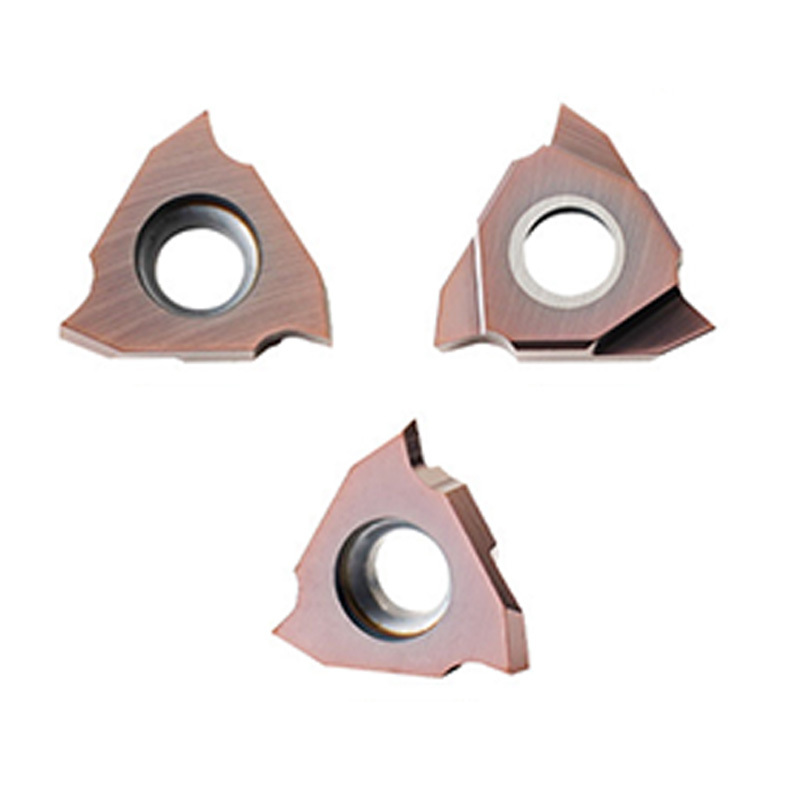

TGF32 Series Cut Off Inserts for Lathe and CNC Machines

TGF32 Application Field

The TGF32 series consists of carbide grooving and cutting-off inserts, primarily utilized for turning and grooving operations on lathes and CNC machines. These inserts come in various shapes and cutting angles.

Inserts Production Standard

Insert sizes can be customized according to customer specifications and adhere to standards such as the Kyocera TGF32 series, as well as NTK's GTM32, GTMX32, and GTMH32 series.

The TGF32 series is well-regarded for its carbide inserts, with the designation “R100 010” indicating the specification and cutting orientation. Our Drow standard production sizes and inventory specifications are closely aligned with this series.

The GTMH(X)32 series, also from NTK, offers similar specifications to TGF32.

For further details, please refer to the section below.

Product Details: TGF32R/L

• Material Quality: Crafted from 100% original carbide powder, ensuring outstanding wear resistance and toughness.

• Dimensions:

  • Cutting Width (CW): 0.33–2.50 mm
  • Cutting Diameter (CDX): 0.8–2.50 mm
  • Edge Radius (RE): 0.05–0.10 mm

• Coating Technology: Coatings can be tailored to specific applications, providing excellent corrosion and wear resistance.

• Fine Grinding Process: The insert surface is finely ground for high smoothness and superior edge quality, effectively minimizing friction and loss.

• Perfect Fit: Designed with precise and smooth edge strips, reducing the risk of micro-vibration during machining.

• Applicable Materials:

  • Uncoated Inserts: Suitable for aluminum, non-ferrous metals, and non-metallic materials.
  • Coated Inserts: Ideal for carbon steel, alloy steel, mold steel, hardened steel, and ductile iron.

• Customization: If standard stock does not meet your requirements, please attach CAD or 3D drawings for inquiries.

• Production Quality: All inserts are manufactured and coated using high-end EU processing equipment. For additional information, please refer to the “Entire Production Quick View” section.

Key Features

1. Edge Protection: Chamfering and tip-arc processing of the insert cutting edge effectively safeguard against fractures, resulting in a smooth finish on workpieces.

2. Advanced Coating: Our high-performance composite coating ensures an exceptionally hard and smooth surface.

3. Efficient Chip-Breaker Design: The professional chip-breaker design guarantees optimal cutting performance.

4. Precision Engineering: With precise dimensions and high accuracy, these inserts fit perfectly into tool holders, minimizing the risk of micro-vibration during machining.

5. Superior Material: The base material, sourced from Europe, offers enhanced oxidation and wear resistance.

6. Customizable Options: We provide tailored insert designs, including various dimensions, coatings, chip-breakers, and material grades.

Carbide inserts manufactured by We Drow enable efficient machining and extended tool life, receiving positive feedback globally.

Product Specification:

Entire Production Overview

1. Material Sintering: Utilize 100% original carbide powder to create a solid insert blank through the sintering process.

2. Flat Grinding: Perform flat grinding machining to achieve precise dimensions.

3. Surrounding Grinding: Execute surrounding grinding machining for enhanced accuracy.

4. Cutting Edge Formation: Develop the insert's cutting edge for optimal performance.

5. Edge Treatment: Chamfer and process the tip-arc of the insert cutting edge to ensure durability.

6. Composite Coating Application: Apply a composite coating for improved wear and corrosion resistance.

Quality Inspection:

Why Choose Us

1. Technical Innovation: We rapidly create complex surfaces and functional structures while maintaining accuracy.

2. Processing Speed: Our short production cycles ensure timely delivery, meeting your deadlines consistently.

3. Product Quality: We guarantee high-quality standards, with precision levels reaching up to 0.005-0.001 mm.

4. Confidentiality Assurance: We implement triple confidentiality measures to safeguard your information, providing peace of mind.

5. Comprehensive Facilities: Our advanced equipment and multiple production lines enhance our processing capabilities.

6. Cost-Effectiveness: Thoughtful design and material selection allow us to offer competitive pricing, enabling you to obtain favorable rates on comparable products.

FAQ

Q1: Are insert samples available?
A: Yes, we provide free samples; however, the freight cost is the responsibility of the buyer.

Q2: Can we receive a discount for larger orders?
A: Absolutely! We can offer our best pricing and discounts for substantial order quantities.

Q3: How can we trust the quality of your products?
A: We conduct a 100% quality inspection for the initial batch and perform random inspections for subsequent batches. Raw materials are tested before bulk production, and we verify physical properties, shape, and tolerances to ensure product quality before shipping.

Q4: What shipping methods do you use?
A: We provide the best transportation options based on customer requirements.
